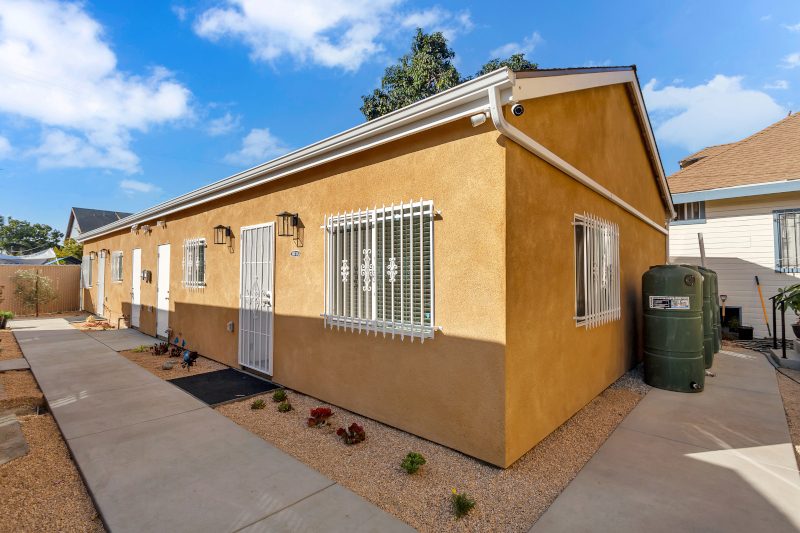

Side-by-side duplex ADU in Los Angeles — single-story building with two separate private entrances, one for each unit
Duplex ADU Plans · Side-by-Side and Stacked

Two rental units. One detached building. One permit.

Permit-ready duplex ADU plans for California properties with an existing multifamily building. Two independent units — separate entrances, kitchens, baths and laundry — in a single detached structure approved ministerially under state ADU law.

2Independent units
822Total sqft
32′×26′Footprint
0Parking required
The Lineup

Two duplex configurations

Which one you can build is decided by your height allowance, not your preference. Side-by-side fits under 16 feet and works anywhere. Stacked needs 18 feet and halves the footprint.

Side-by-side duplex ADU in Los Angeles — single-story board-and-batten building with two separate entrances, one per unit

Side-by-Side Duplex

Two units, shared center wall

16 ft
Configuration
2 × 1BR / 1BA
Size
420 sqft per unit
Footprint
32' × 26'
Stories
Single story

Two mirrored one-bedroom units under one roof, each with its own entrance, kitchen, bath and laundry. Fits inside the 16-foot base height allowance, which means it works on properties that cannot get to 18 feet — including single-story buildings away from transit.

  • Both units land under 750 sqft, clearing the impact-fee exemption twice
  • Two dwelling units keeps it in the simpler building-code category
  • No height qualification needed — 16 ft works everywhere
Plans + permit processing $9,490
Estimated construction $265,000–$295,000 Estimate by an independent licensed general contractor. Not a CALI ADU price.
Visualize My ADU 15 minutes · No obligation
Renderings coming

Stacked Duplex

One unit above the other

18–20 ft
Configuration
2 × 1BR / 1BA
Size
Per-unit sqft on request
Footprint
Compact
Stories
Two stories

The same two units stacked rather than spread — roughly half the ground footprint, which is what makes it work on a narrow or shallow lot. Requires an 18-foot height allowance, so it is only available if your existing building is multistory or you are within a half mile of qualifying transit.

  • Half the footprint of side-by-side — preserves rear yard
  • The answer when lot width will not take a 32-foot building
  • Needs 18 ft: multistory existing building, or transit proximity
Pricing On request

The stacked plan is drawn. We are finalizing the plan fee and build range and would rather quote your lot than post a number we intend to revise.

Ask about the stacked plan
Floor Plan

Side-by-side duplex — 822 sqft

Floor plan of the CALI ADU side-by-side duplex ADU: two mirrored 420 square foot units, each with bedroom, closet, bathroom, kitchen, living and dining areas, in-unit washer dryer and a separate entrance
Two mirrored units on a 32′ × 26′ footprint. Each has its own entrance, kitchen, full bath, bedroom with closet, and in-unit washer/dryer and water heater. At 420 sqft per unit, both sit under the 750 sqft threshold where impact fees begin — which is worth real money on a two-unit build.
Inside a Unit

Each side is a complete home

Open living and dining area inside a CALI ADU duplex ADU unit
Living / dining
Kitchen inside a CALI ADU duplex ADU unit
Kitchen
Bedroom with closet inside a CALI ADU duplex ADU unit
Bedroom
Full bathroom inside a CALI ADU duplex ADU unit
Bathroom
Separate private entrance to one unit of a CALI ADU duplex ADU
Private entrance
In-unit laundry and water heater closet in a CALI ADU duplex ADU
In-unit laundry

Can you build this?

If your lot already has a building with two or more attached dwelling units — a duplex, triplex, or fourplex — then under California Gov. Code § 66323 you are entitled to add detached ADUs equal to your existing unit count, up to eight. HCD has confirmed those ADUs do not have to be detached from each other, which is precisely why a single detached duplex building is a legitimate two-ADU project rather than two separate cottages.

Zoning is not the test. A duplex in an R1 single-family zone still counts as a multifamily dwelling under state ADU law.

2-unit+2 detached
3-unit+3 detached
4-unit+4 detached

Each of those also gets one interior-conversion ADU from non-livable space. The rules behind all of it — height tiers, setbacks, impact fees, what a city cannot require, and what actually blocks these projects — are laid out in full on our multifamily ADU guide.

Not sure which plan your lot supports? The multifamily feasibility assessment is $490, credited in full toward design. It confirms your entitlement, your height allowance, and which of the two configurations above actually fits — before anything gets drawn.

Duplex ADU questions

Can I build a duplex ADU on my property?

If your lot already has a building with two or more attached dwelling units, yes — California Gov. Code § 66323(a)(4) entitles you to add detached ADUs equal to your existing unit count, up to eight, and HCD has confirmed those ADUs do not have to be detached from each other. That means one detached duplex building counts as two ADUs. If you have a single-family house instead, you are on a different pathway: one detached ADU, one conversion ADU, and one JADU. Full rules are on our multifamily ADU guide.

What is included in the plan fee?

Architectural plans, structural engineering, Title 24 energy compliance, and permit processing through to issuance. What is not included: city plan check and permit fees, which you pay directly at cost, plus any soils or survey reports your jurisdiction requires. Construction is quoted separately by a licensed general contractor.

Why is construction quoted separately from the plans?

Because construction cost is genuinely site-specific on a multi-unit building — utility runs, site access, grading, and existing service capacity vary far more than they do on a single backyard ADU. Publishing one fixed build number across every lot would be a number we would have to renegotiate. The plan fee is fixed. The construction range shown is an estimate from an independent licensed GC and gets firmed up once we have your site conditions.

How tall can the building be?

Sixteen feet is the base. You get 18 feet if your existing multifamily building is multistory, or if the property is within a half-mile walking distance of a major transit stop or high-quality transit corridor. Twenty feet is available only through the transit pathway, with a roof pitch matching your primary building. This is the single fact that determines whether the stacked plan is available to you, and it is the first thing we check.

Do I need to add parking?

No. Local agencies may not impose parking requirements on ADUs created under Gov. Code § 66323. You are also not required to replace parking you remove — if you demolish a garage or carport to make room, no replacement is required. One caution specific to tenanted Los Angeles properties: taking a parking space from an existing tenant on an RSO property may require a corresponding rent reduction.

How long does permitting take?

The agency must determine whether your application is complete within 15 business days, then approve or deny within 60 days of a complete application. Miss the 60 days and it is deemed approved by operation of law. Review is ministerial — no public hearing, no design review. The practical variable is completeness, which is where multi-unit projects lose time.

Duplex ADU Plans

Two units behind your building. See what your lot supports.

We confirm your entitlement and height allowance first, then match you to the configuration that actually fits.

Designed in-house · Transparent pricing · Your choice of builder
